Design and Simulation of an Electric Powertrain for Aircraft Towing application

Mototok Twin 7500NG - Aircraft Towing System

All the concerns with traditional aircraft towing for years — whether that’s operator training, collisions due to miscommunication, or defective equipment due to insufficient maintenance has sparked the realization that there needs to be a better way.

Mototok, a company founded in 2003, came up with a revolutionary technology. They designed an aircraft towing system, an unmanned automated guided vehicle, that weighs 2,100kg and can tow a Boeing 737 weighing up to 75,000kg! I found this to be insanely cool, and so I decided to model and simulate its electric powertrain using MATLAB/SIMULINK.

Below are two figures that represent the towing done to move the aircraft:

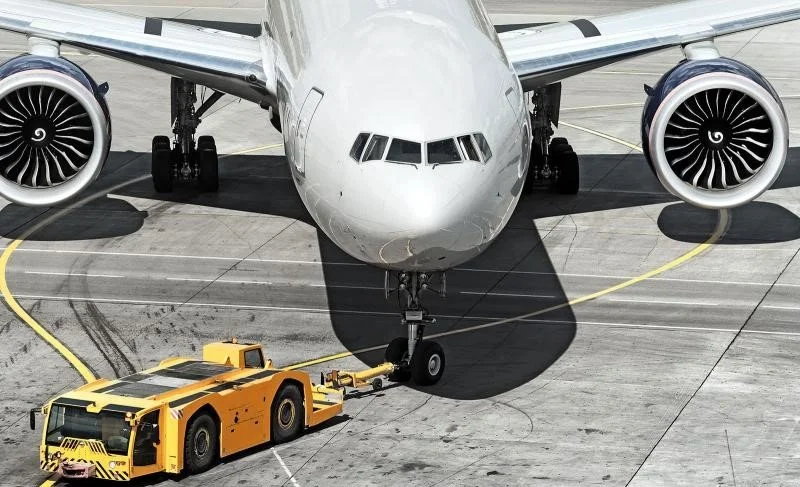

This represents the traditional towing method via a tow truck/tractor.

How towing is done using the ATS created by Mototok.

Both powertrains can tow a Boeing 737, but Mototok’s ATS does it with:

  • Fewer emissions due to its electric drive.

  • Extremely powerful electric motors – driven by high performance, maintenance-free batteries with high recycling capability.

  • Being radio remotely controlled — only 1 person required for operation (as opposed to at least 4 that are required for towing with a truck/tractor). The operator is able to move around to see every vantage point, ensuring high safety and reliability.

  • Extreme compactness.

  • Little to no maintenance costs.

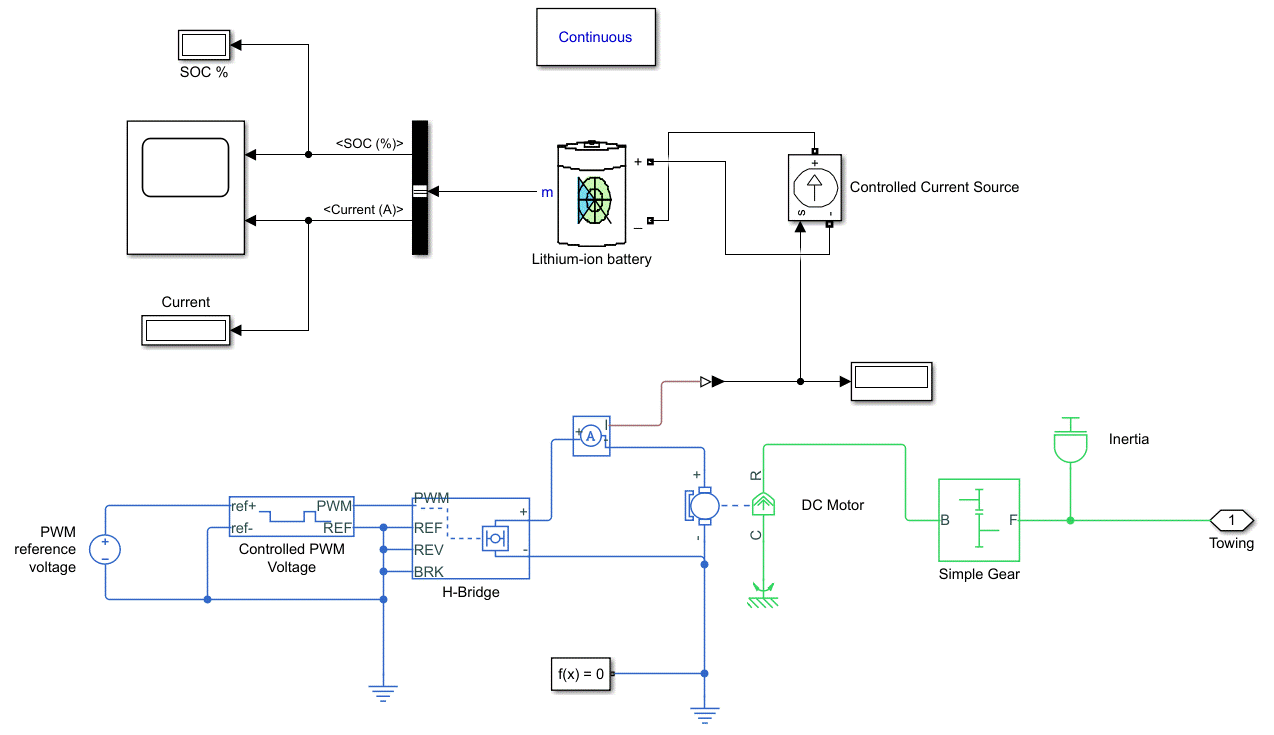

Overview of the entire model:



Subsystems:

  • Electric powertrain

  • Vehicle body



Results of the simulation: 20 second tow test

  • Since all the calculations have been done with a tow time of 20 seconds at max speed, the final 20 seconds of the results are used The ATS is able to move the aircraft by 16.26m, giving a speed of about 0.81m/s. According to ATS data, it can travel at a top speed of 1.05m/s, which is not too far from our results here and is fairly accurate.



Capacity: state of charge and distance

  • The current powertrain is capable of towing the aircraft for about 1190 seconds, which is about 20 minutes. Beyond that the battery would be depleted to 0% and would need to be recharged.

  • The total distance that this powertrain can tow the aircraft for in those 20 minutes is about 950m.



Velocity:

  • The ATS reaches its top speed of 0.81m/s at around 100 seconds, and moves constantly at that speed until battery runs out.



To view the full project report, click here
